Rapid Prototyping Services

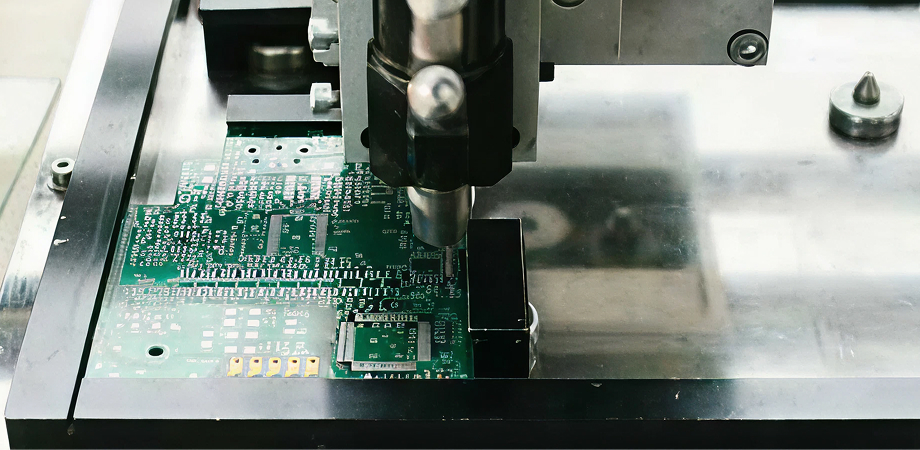

Bring your PCB designs to life with rapid prototyping

24 hours - Quick Turn PCB assembly

We are aware of how crucial the timely implementation of high-quality designs is. Utilize our state-of-the-art assembly line to realize the functionality of your ideas.

Our rapid prototyping applies to all PCB assembly, EMS manufacturing components, and plastic housing parts. You may uncover possible issues and fix them before mass production by putting your ideas into action, whether using microcontrollers, circuit boards, or 3D-printed enclosures.

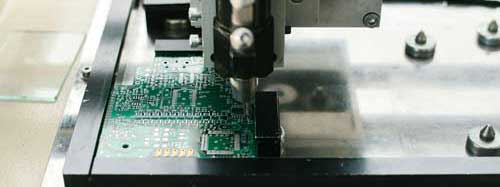

rapid prototyping

Rapid prototyping lets you test, try, and fix

Component Procurement

Quality components procuring globally


Transparent assembly line to ensure quality and realization

Supply Chain

Make sure your prototype are delivered on time

Optimization & validation before entering into mass production

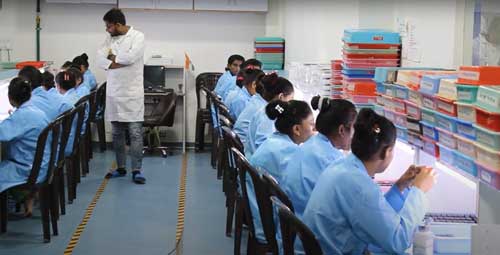

mass production

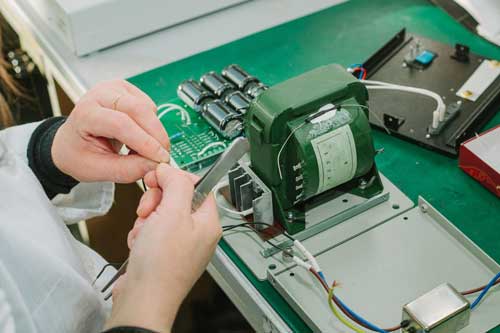

Part sourcing

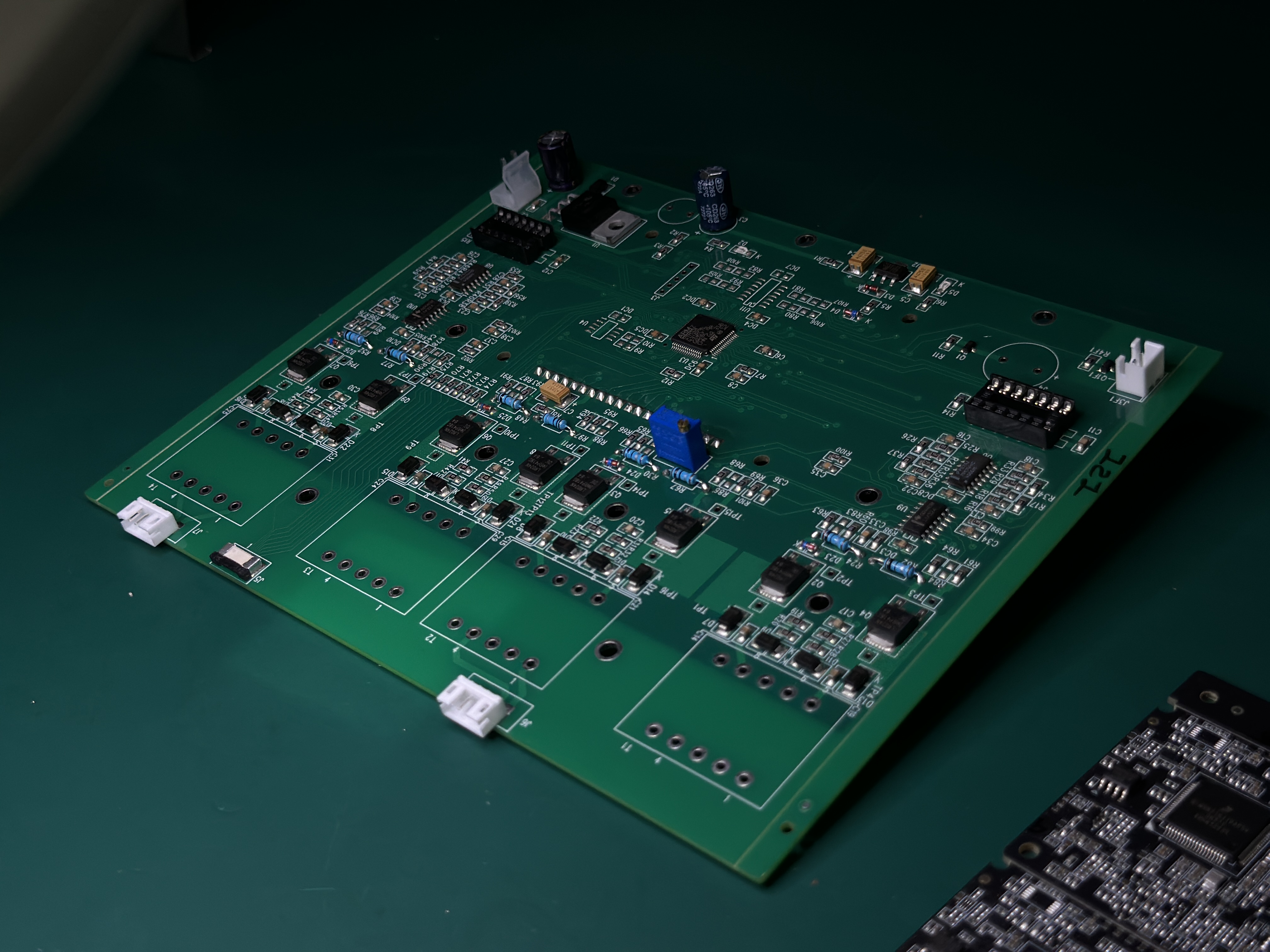

Quick turn PCB fabrication

Quick turn box building

Systems integration

Accessories fabrication or sourcing

Part inspection and qualification

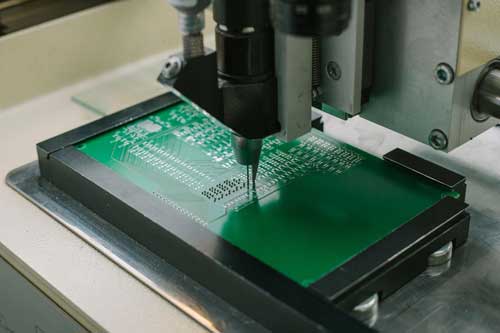

Quick turn PCB assembly

PFMEA & DFx report

Test development

Systematic approved vendor list & part management

Analysis and report review to design correction

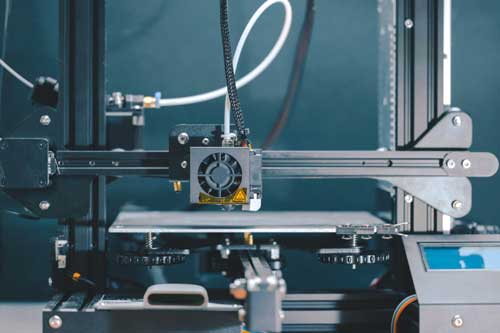

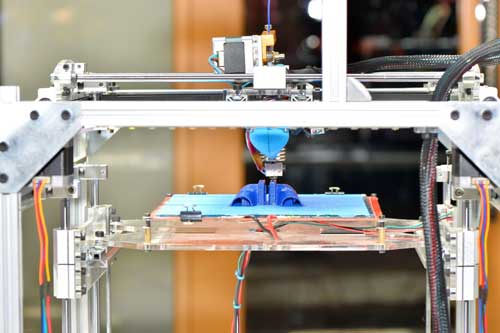

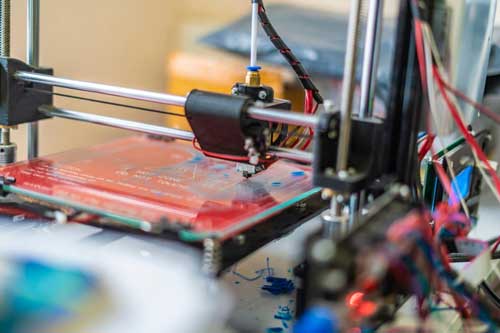

Plastic part prototype by SLS, SLA, FDM, CNC, and 3D printing

Full realization of the product

With our capacity for plastic injection molding, mechanical assembly, PCB assembly, design and engineering, and extensive testing services, Mefron Technologies can manufacture the prototype of the actual product in addition to rapid prototyping of assembled PCBs.

Quality control

For us, quality comes first. We put all of our products through extensive testing before they leave our facility to ensure your prototype is being manufactured and working as per your design. Every mechanical assembly we make is tested using cutting-edge technology to ensure that it satisfies the highest industry requirements for reliability and use.

Cost-effective service

Our skilled team specializes in producing high-end, budget-friendly prototypes. To guarantee that your designs and ideas are efficiently realized in terms of cost and practicality in the real world, we use a variety of cutting-edge processes and technologies.

We take care of the supply

Also, we take responsibility for delivering your finished products to the location of your choice. From sourcing to delivery, we handle the whole logistical process, freeing you to focus on what matters to you. You will get a brief glimpse of our supply chain management service in operation.

Mefron Prototyping Capabilities

Quality Grade

Standard IPC 1

Number of Layers

1 - 8layers

Order Quantity

5pcs - 100pcs

Build Time

2 - 7 days


FR-4 Standard Tg 140°C, FR-4 lead-free (370HR material)

Board Size Tolerance

±0.1mm - ±0.3mm

RoHS Available?

If you choose RoHS compliance, the prototype will come with RoHS.

Board Thickness

0.4mm - 2.0mm

Board Thickness Tolerance

±0.1mm - ±10% of the thickness of board

Copper Weight

1.0oz - 2.0oz

Solder Mask Sides

Single, Double Side

Solder Mask Color

Green, White, Blue, Black, Red, Yellow

Silkscreen Sides

As per the file

Silkscreen Color

White, Black

Surface Finish

Lead-Free HASL - RoHS
HASL - Hot Air Solder Leveling
ENIG - Electroless Nickle/Immersion Gold - RoHS

Min Annular Ring


Min Drilling Hole Diameter


Min Width of Cutout (NPTH)


NPTH Hole Size Tolerance

±.002" (±0.05mm)

Min Width of Slot Hole (PTH)


PTH Hole Size Tolerance

±.003" (±0.08mm) - ±.006" (±0.15mm)

Surface/Hole Plating Thickness

20μm - 30μm

SM Tolerance (LPI)

003" (0.075mm)

Aspect Ratio

10:1 (board thickness: hole size)


10V - 250V, In-Circuit Testing, Functional Testing, Burn In Test Spectrum Test

What Mefron offers with our rapid prototyping services:

Speeds up the design process:

We quickly generate and test out various design ideas. This can help you find design faults early on in the process and repair them, thus saving you time.

Reduces development costs:

We believe in cost-effectiveness in prototyping. By identifying design flaws early on, you can avoid costly mistakes during the development phase. This can save you both time and money, in the long run.

Improves collaboration:

The use of rapid prototyping enables closer collaboration between designers and developers. Early idea testing allows you to gather important comments and input from all stakeholders, improving the final product.

Satisfied customers:

You can develop a product that better satisfies the needs of your customers by quickly iterating and testing out design concepts. Increased client satisfaction and increased sales

Enhance innovation:

We are always eager to discover new ideas and concepts. You can explore new design possibilities and push the boundaries of what is possible by swiftly testing out various ideas.

rapid prototyping services

Obtain more information by connecting with our experienced staffs.

We’re available for 8 hours a day!
Contact us to get an in depth analysis and assessment of your project.

Reach out now!
